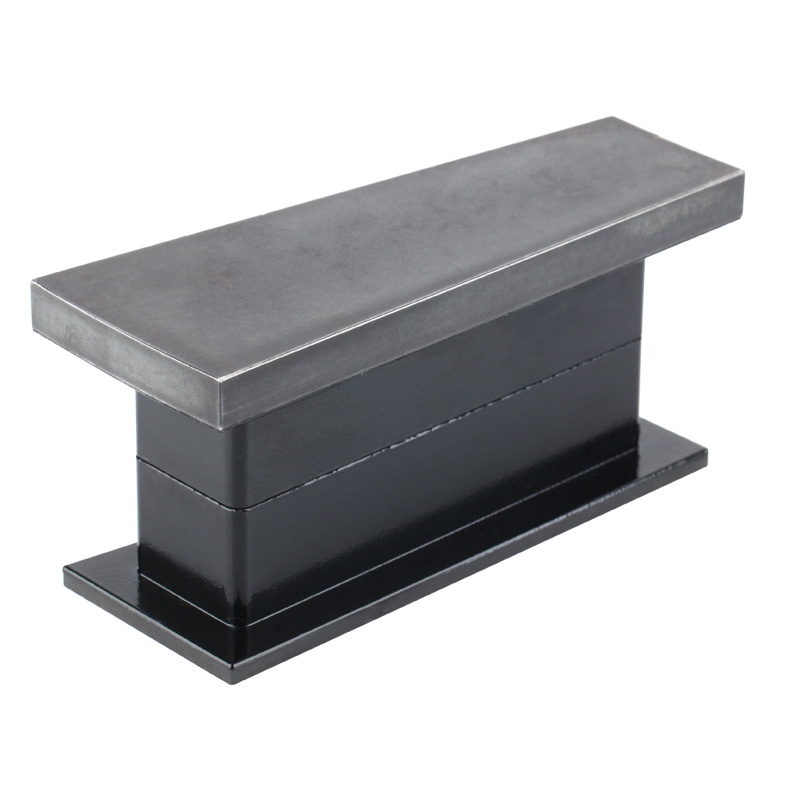

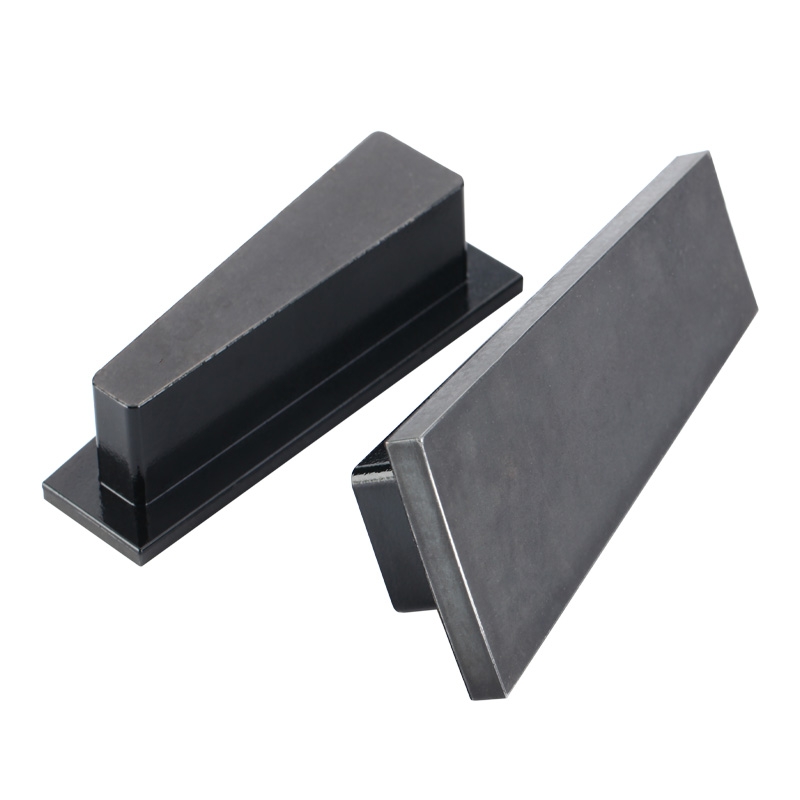

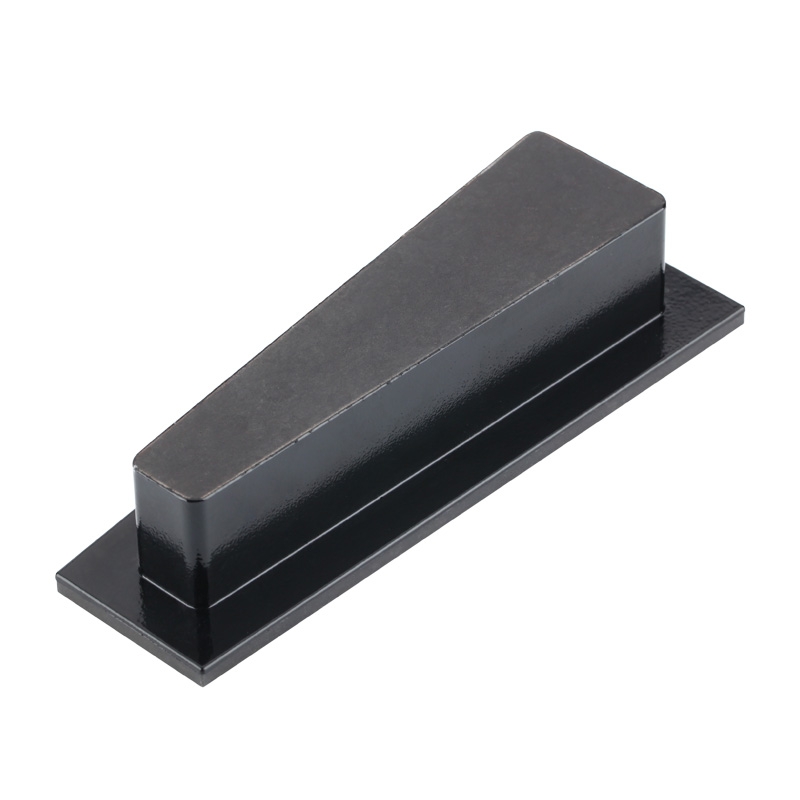

Raw material: high purity iron powder coated with insulating layer
Size (mm): L340-W120-H45, sizes and structures can be customized
Density: 7.4g/cm³
Heat treatment temperature: about 650°C
Surface treatment: No
Advantages of Soft Magnetic Composites:
1. High power density by 3D magnetic flux
2. Lower eddy current losses at high frequencies compared with lamination steel
3. Complex shapes can be made easily, making the design more flexible
4. Quick response,Fast and accurate drive
5. Reducing the size and the weight of the motor significantly, saving copper
6. Soft Magnetic Composite can improve the motor/engine performance, and can reduce cost obviously.
Raw material: high purity iron powder coated with insulating layer
Size (mm): L340-W120-H45, sizes and structures can be customized
Density: 7.4g/cm³
Heat treatment temperature: about 650°C
Surface treatment: No
