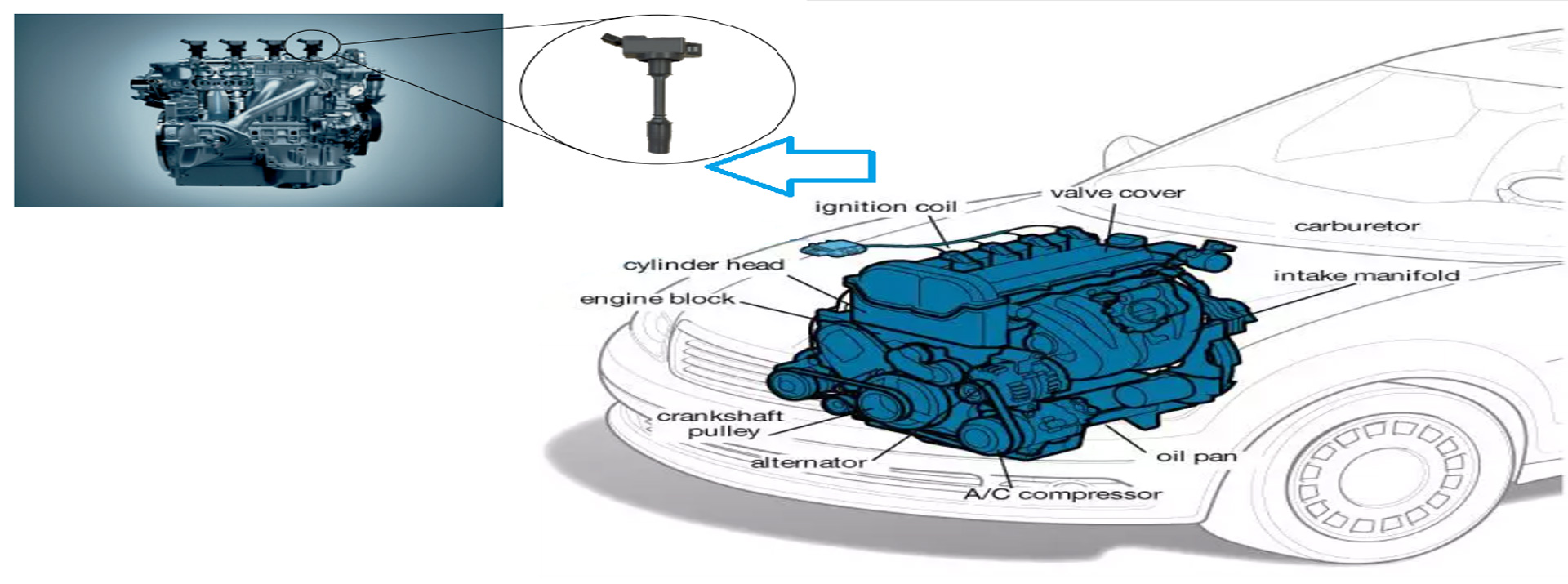

Soft Magnetic Composites (SMCs) offer several advantages when used in ignition systems, particularly in electronic ignition systems for automotive and other combustion engine applications. These benefits include:
High Permeability: SMCs have high magnetic permeability, which allows for efficient magnetic field control and distribution within the ignition coil. This property enhances the performance of the ignition system, providing faster rise times and higher energy output for the spark.
Low Core Losses: SMCs exhibit low core losses, resulting in reduced energy dissipation during the operation of the ignition system. This advantage leads to improved energy efficiency, contributing to the overall performance and fuel efficiency of the combustion engine.
Enhanced Frequency Response: SMCs maintain their high permeability and low core losses over a wide frequency range, allowing ignition systems to operate effectively across various frequencies. This characteristic is particularly beneficial for modern ignition systems that utilize high-frequency switching for improved combustion control.
Greater Design Flexibility: The ability to create complex 3D magnetic circuits using SMCs allows engineers to develop innovative and customized ignition system designs tailored to specific applications and requirements. This flexibility can lead to improved performance and functionality in various ignition applications.
Lightweight and Compact: The high saturation flux density and permeability of SMCs enable the development of lightweight and compact ignition system designs without compromising performance. This benefit is particularly important for applications where space and weight constraints are critical, such as in automotive and aerospace systems.
Simplified Manufacturing and Assembly: The powder metallurgy techniques used to shape SMCs can result in lower manufacturing costs compared to conventional laminated magnetic materials. Additionally, the use of SMCs can simplify the assembly process of ignition systems by reducing the number of components required, further lowering production costs.
Improved Thermal Management: The reduced eddy current losses in SMCs lead to less heat generation during operation, contributing to better thermal management. This benefit can prolong the lifespan of ignition systems and reduce the risk of thermal-related failures.
Enhanced Reliability: The homogeneous distribution of magnetic particles in SMCs results in a more uniform magnetic field, which can lead to increased reliability and durability of the ignition system components.
In summary, the use of Soft Magnetic Composites in ignition systems provides numerous benefits, such as high permeability, low core losses, enhanced frequency response, and greater design flexibility. These advantages make SMCs an appealing choice for various ignition system applications, including electronic ignition systems for automotive and other combustion engine systems, contributing to improved performance, efficiency, and reliability.
