Recently, powder metallurgy (P/M) has become increasingly more pervasive as another option for

electrical machines. The measure is a fundamental one, requiring possibly squeezing and further heat treatment whenever required. Benefits of powder handling incorporate less machining time to create components, less energy utilized all through the assembling cycle, and less waste material. These outcome in cost and cycle time investment funds for the end result. The completed materials are tantamount with traditional materials, and surely the attractive conduct is improved because of the particulate nature of the completed materials (for example eddy current losses are decreased because of the surface coatings on the powders).

P/M innovation is utilized for auto applications, electrical engine applications and a lot more besides. Specific sorts of machines that have been made as models are pivotal field brushless, reluctance, outspread and hub field lasting magnet engines, hook shaft armature machines and cross over transition machines.

The partial list shows the huge number of contrasting kinds that can be made, and supports that soft magnetic composites (SMCs) are truly adaptable in term of uses.

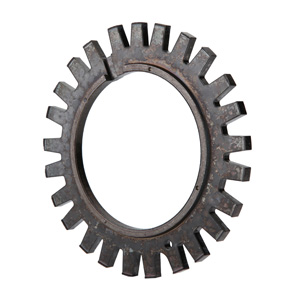

Figs. 1 and 2 show well the complex shapes that powder metallurgy is fit for delivering. These shapes were completely squeezed by the single-press technique and have had practically nothing, assuming any, post-measure machining. Just as the intricate shapes conceivable, this delineates the simplicity of production and the close net shape manufacturing achievable with the interaction. Recently, advances have been made in the powders, yet in addition in the covers and greases that encompass them, the squeezing measures, and these advance shave implied that the squeezed densities approach those of the base metals that they are replacing.

                                                fig.1                                                                                      fig. 2

This is vital, as the density and strength are connected. The density the compact, the greater the strength. Likewise, on account of the compacts utilized for machines, the denser the compact the better the electromagnetic behavior. These focus will be developed in the fundamental body of this article.

Essential strategy for squeezing powders

The ferrous powder is the most essential spot at which to begin the material decision. The powders can be anyplace from nano-particulate to 500 um in size. Various powders give diverse squeezing constraints, and so the size thought is vital. Additionally, the powders can be various shapes, anyplace from chip like to consummate circles relying on the particular use for which they are required. Once more, this is a vital choice.

The additives are any amalgam augmentations to the ferrous metals, just as any greases or fasteners utilized in the handling of the materials. Alloying can help the last properties of the squeezed powder and can help make it simpler to press. The last two added substances are utilized to help the squeezed powder discharge from the bite the dust, just as to add mechanical solidarity to the green conservative.

The sintering stage can include temperatures up to 115O℃ for a few hours. It tends to be done under vacuum, in air or in idle gas, all of which will give distinctive last properties to the squeezed minimal. In any case, even in this last stage there are factors, for example, green spring-back, voiding and thickness varieties that can drastically influence the properties of the completed article.

Powders, binders and lubricants

Albeit ferrous powders can easily be squeezed into the net shape needed, for soft magnetic composite a binder or lubricant is generally required.

The binder is utilized to make the real mechanical squeezing measure simpler. It permits the example to be catapulted without putting a lot of power on the green conservative, which can harm it impressively.

These melt at around 150°C,and decompose at around 600°C.Studies have shown that zinc stearate gives the best green density, which Acrawax gives minimal measure of dimensional swelling. This last property is significant if close to net shape squeezing is to be accomplished. The cover is a covering of around O.5-1% wt, which invigorates mechanical the green smaller.

as the materials can be extremely fragile in this state and must be dealt with cautiously. On account of SMCs, this layer additionally gives protection between the squeezed particles. This is fundamental if the properties of the squeezed powders are to be streamlined and misfortunes because of vortex ebbs and flows are to be limited.

The actual powders are clearly significant as well. On account of delicate attractive applications,the more modest kinds of powder are utilized for high-recurrence applications; the bigger sorts will in general be utilized for low-recurrence applications. Ferrous powders are avadable in sizes going from the nano-particulate up to around 500 um. These distinctions likewise result in differences conditions during the squeezing stage, all of which should be thought of. The powders can likewise be alloyed for various applications. For example, iron-nickel composites give high permeability values, iron phosphorous amalgams have great attractive and mechanical properties, and combinations with silicon bring about low iron misfortunes.

as the materials can be exceptionally fragile in this state and must be taken care of cautiously. On account of SMCs, this layer additionally gives protection between the squeezed particles. This is fundamental if the properties of the squeezed powders are to be improved and misfortunes because of whirlpool flows are to be limited.

The actual powders are clearly significant as well.

On account of delicate attractive applications, the more modest kinds of powder are utilized for high-recurrence applications; the bigger sorts will in general be utilized for low-recurrence applications. Ferrous powders are available in sizes going from the nano-particulate up to around 500 um. These distinctions likewise result in different conditions during the squeezing stage, all of which should be thought of. The powders can likewise be alloyed for various applications. For example, iron-nickel composites give high penetrability esteems, iron phosphorous combinations have great attractive and mechanical properties, and alloys with silicon bring about low iron losses.

Post-pressing operations

The primary post-measure treatment utilized is sintering, although this is somewhat of a misnomer on account of delicate attractive composites as these compacts are not really sintered. As the temperature is raised to around 1000°C, the grains in the squeezed powder start to unwind furthermore, some grain development happens. The lower the sintering temperature, the more modest the grain development when contrasted with a higher sintering temperature. The unwinding is conceivable as the grains will have inactive energy from being stuck and distorted during the squeezing interaction. This can veil a portion of the attractive properties and the unwinding of the grains prompts a decrease in the hysteresis misfortunes inside the example. As referenced beforehand, the cycle isn't just that of void decrease, as is normally perceived by the term sintering' in metallurgy; it is likewise a tempering interaction, which brings about slight mellowing of the ferrous powders and unwinding of the grains.

There have been numerous advances in powder innovation lately. Some of these include distinctive alloying procedures for the powders. The most fundamental technique for making alloy powders is to liquefy the components together and afterward atomise the subsequent composite into the necessary powder size. Be that as it may, this is a tedious cycle. Later advances have utilized covers to join more modest, alloying, particles to bigger ferrous particles. This implies that the powders can essentially be admixed together, which wipes out the soften phase of the cycle, and is far easier. The after effect of this is better stream for upgraded de-fill properties, less residue, and less isolation of powders, just as expanded green strength. These are dispersion fortified powders, utilizing composites of nickel, copper and molybdenum. Their compressibility remains practically equivalent to that of the constituent powders and they likewise have an expanded exhaustion opposition property once sintered. Also, the dimensional change in the wake of sintering stays consistent, which maintains a strategic distance from any contortion in the wake of handling.
