In recent years, there has been an articulated trend of taking on electric drive frameworks and electronic control frameworks to accomplish automation and multi-usefulness in items like autos and appliances. Improvement of soft magnetic composite materials is firmly requested due to realize higher speed, larger magnetic flux and better drive productivity. Additionary, sufficient mechanical properties are likewise requested for applications including moving parts.
During the last several years, interest in the investigation of soft magnetic composites (SMCs) has been expanding at a speeding up rate, animated by late advances in materials blend and portrayal procedures and the acknowledgment that these materials display numerous novel and fascinating physical and substance properties with various expected mechanical applications.
They play a key part in power dispersion, make possible the transformation among electrical and mechanical energy, underlie microwave correspondence, and give both the transducers and the active storage material in data frameworks.
New advancements in powder composites make SMCs interesting for applications with regards to electrical machines, when joined with new machine configuration rules and new creation strategies. These composites enjoy a few benefits, like decrease in weight and size. Weight can be decreased through a few sorts of innovation enhancements; in materials, plan methods and manufacture processes. To lay out the plan rules, one should focus on electromagnetic misfortune qualities of SMCs. A few different series of iron based SMCs are:
(1) high purity iron powder with insulating film,
(2) sintered iron-based powders,
(3) unadulterated iron powder with increments of Znstearate and carbon,
(4) iron-based powder amalgams (Fe, Ni, Co, Si),
(5) monetarily accessible iron powder Somaloy® . Among these, the composite materials limit bordering motion because of their distributed air gap.
Two vital qualities of an iron center part are its magnetic permeability and core loss attributes. The magnetical, electrical and mechanical characteristics rely upon the planning and handling of the parts. Likewise the materials purity, shape and size of particles impact the by and large magnetic reaction.
Two essential kinds of delicate attractive materials are broadly utilized, contingent upon the application and its necessities. These materials are:
(a) Ferrimagnetic materials, which depend on earthenware oxides of certain metals, like ferrites and are relevant to frequencies from a couple of kilohertzs to well north of 80 MHz.
(b) Ferromagnetic materials in view of iron and nickel, which are for lower frequency applications, <2 kHz, comprise of iron-based combinations which have low to medium recurrence applications in electric machines. SMCs are ferromagnetic materials with altogether worked on medium to high frequency properties which made them a feasible choice to lamination steel sheet in a scope of new applications, for example, sensors solenoids.
The extraordinary properties of the soft magnetic composite materials incorporate magnetic and thermal isotropy, extremely low eddy current loss and generally low complete core loss at low to high frequencies, high magnetic permeability, high remanent magnetization, high resistivity, decrease in size and weight, largean isotropy steady, low coercivity and high Curie temperature. Soft magnetic composites are isotropic, have further developed high recurrence execution and can be compacted to 3D-shapes utilizing the laid out PM compaction course. The delicate attractive composites have likewise specific constraints: on a section they have greatest porousness and attractive enlistment than overlays, on the other part the powder metallurgical strategies utilized in head for the getting of delicate powdered centers are not appropriate for all sizes and states of the center parts.

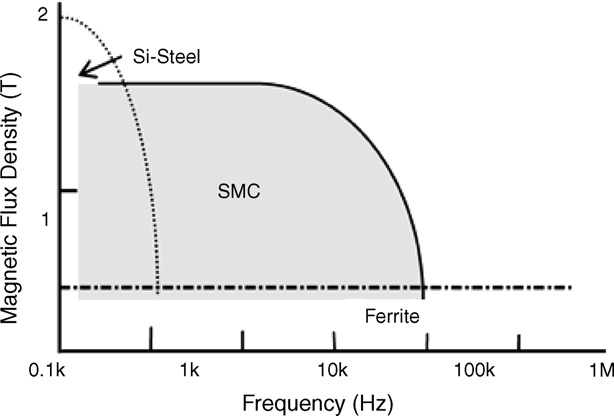

The following picture shows the relevant districts for soft magnetic materials utilized in AC attractive fields. Soft ferrite has low core loss in the high frequency district, yet because of its low magnetic flux density. Electrical steel sheets have high motion thickness, yet electrical sheets can't be utilized in the high recurrence district due to inordinate center misfortune. Powder centers are attractive materials which cover the locale where the previous two attractive materials can't be utilized.
The utilizations for soft magnetic composite materials are regularly named either direct current (DC) or alternating current (AC) applications. DC applications are described by a consistent applied field(from a battery type device). The most well-known DC applications are found in automobiles. Key magnetic feature for DC applications are permeability, coercive power, and saturation induction. For AC applications, a variable field is applied. The materials for AC electromagnetic circuits require high induction and low eddy current losses. These are firmly affected by the work frequency and induction, and furthermore by the extent of density and electrical resistivity of materials. Key magnetic parameters in AC applications are saturation, permeability, total core losses coming because of the alternating magnetic field. In any case, the new presentation of polymer covered iron powers has opened the door for P/M to be used in AC applications. These polymer covered powders are generally utilized in the as pressed condition.
